For all aluminum stranded conductors, eg., ACSR, AAC, AAAC, ACAR, ACSS & composite core.

Also available for use on OHSW, OPGW, Copper and SWER

Clampstar® Catalog

Discover how ClampStar® is the preferred solution for various application needs

ClampStar®

ClampStar® is an engineered electrical and mechanical shunt that, along with proactive maintenance practices improves safety and prevents unplanned outages.

ClampStar is the industry’s only PERMANENT life extension solution for virtually all overhead conductors.

Increasing power flows on some of the oldest lower-voltage circuits, especially during emergencies has put significant pressure on a power grid that was built mainly to serve local markets.

ClampStar is necessary to help bring the power grid up to a level of acceptable physical soundness and reliability.

Aluminium

For all aluminum stranded conductors, eg., ACSR, AAC, AAAC, ACAR, ACSS & composite core.

Other Materials

Also available for use on OHSW, OPGW, Copper and SWER

Products

ClampStar® is an engineered electrical and mechanical shunt that, along with proactive maintenance practices improves safety and prevents unplanned outages. ClampStar is the industry’s only PERMANENT life extension solution for virtually all overhead conductors. Increasing power flows on some of the oldest lower-voltage circuits, especially during emergencies has put significant pressure on a power grid that was built mainly to serve local markets. ClampStar is necessary to help bring the power grid up to a level of acceptable physical soundness and reliability. With ClampStar, splices, deadends and suspension clamps are repaired with NO power interruption; connector replacement is no longer necessary. It easily installs over the existing connector … Read More

Need Help Answering a Question?

Find Your Local RepContact Classic Connectors

Already know which ClampStar you Want?

Request a Quote

Clampstar Installation Photos

Click below to view ClampStar® in action

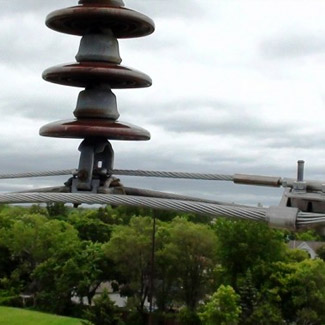

Suspension Clamp

Helicopter Installation

Damaged Conductor

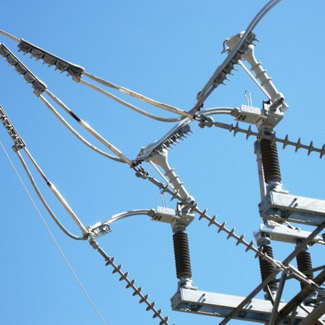

Specials

Splices

Deadend

Transmission & Distribution
Applications

Inline Splices
Suspension Clamps
OPGW

Dead Ends
Gunshot Damaged Conductor
Most Overhead Connectors

Medium length display headline

Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings, add animations, add shape dividers, increase engagement with call to action and more.

Click the button

Gallery

Visit our galleries to see Clampstar in action, or to discover our training videos

Photo GalleryVideo Gallery

ClampStar Part Number	Conductor Diameter Range			Number of Keepers Per Side	Average Weight		Overall Length
ClampStar Part Number	Conductor Range	Inches	mm	Number of Keepers Per Side	Pounds	Kg	Inches	cm
CSS-0642L-036***	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	2	9	4.1	55.6	141.2
CSS-0642-DN-XXX	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	3	12	5.4	64.8	164.6
CSS-0642-DN-XXX-X-X	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	3	14.5	6.6	VARIABLE	VARIABLE
CSS-0642-036	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	3	12	5.4	64.8	164.6
CSS-0642-XXX-BCT	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	3	VARIABLE	VARIABLE	VARIABLE	VARIABLE
CSS-0883-040	3/0 AWG – 477 kcmil	0.502 – 0.883	12.8 – 22.4	3	18	8.2	69.4	176.3
CSS-0883-XXX-BCT	3/0 AWG – 477 kcmil	0.502 – 0.883	12.8 – 22.4	3	VARIABLE	VARIABLE	VARIABLE	VARIABLE
CSS-0883-089-YPT-218A	3/0 AWG – 477 kcmil	0.502 – 0.883	12.8 – 22.4	3
CSS-1108-048	336.4 kcmil – 795 kcmil	00.684 – 1.108	17.4 – 28.1	4	28	12.7	86.8	220.5
CSS-1140L-036	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	8	20.4	9.3	62.0	157.5
CSS-1140S-XXX-BCT	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	16	49	22.2	92	233.7
CSS-1140H-XXX-BCT	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	20	49	22.2	92	233.7
CSS-1140FT-040-BCT	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	20	49.0	22.2	92	233.7
CSS-1386L-036	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	10	21.6	9.8	66.0	167.6
CSS-1386S-XXX-BCT	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	16	49	22.2	92	233.7
CSS-1386FT-040-BCT	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	20	49.0	22.2	92	233.7
CSS-1631L-048	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	12	TBD	TBD	82	208.3
CSS-1631FT-040-BCT	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	20	TBD	TBD	92	233.7
CSS-1912L-048	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	12	TBD	TBD	82	208.3
CSS-1912FT-040-BCT	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	20	TBD	TBD	92	233.7

ClampStar Part Number	Conductor Diameter Range			Number of Keepers Per Side	Average Weight		Overall Length
ClampStar Part Number	Conductor Range	Inches	mm	Number of Keepers Per Side	Pounds	Kg	Inches	cm
Rigid Frame
CSR-1140L-XXX	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	8	VARIABLE	VARIABLE	VARIABLE	VARIABLE
CSR-1140S-048	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	16	31.9	14.5	92	233.7
CSR-1140H-XXX	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	20	VARIABLE	VARIABLE	VARIABLE	VARIABLE
CSR-1140FT-048	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	20	36.3	16.5	100	254.0
CSR-1386L-060	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	10	33.8	15.3	104	264.2
CSR-1386S-060	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	16	33.8	15.3	104	264.2
CSR-1386H-060	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	20	38.7	17.6	112	284.5
CSR-1386FT-060	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	20	38.4	17.4	112	284.5
CSR-1631L-XXX	1272 kcmil – 1780 kcmil	1.292 – 1.631	32.8 – 41.5	12	37.9	17.2	VARIABLE	VARIABLE
CSR-1631S-060	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	20	37.9	17.2	112	284.5
CSR-1631H-060	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	26	53	24.04	124	315.0
CSR-1631FT-060	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	20	37.9	17.2	112	284.5
CSR-1912S-060	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	20	50	22.7	112	284.5
CSR-1912L-XXX	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	12	50	22.7	112	284.5
CSR-1912H-060	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	26	58.0	26.3	124	315.0
CSR-1912FT-060	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	20	50.3	22.8	112	284.5

ClampStar Part Number	Conductor Diameter Range			Number of Keepers Per Side	Average Weight		Overall Length
ClampStar Part Number	Conductor Range	Inches	mm	Number of Keepers Per Side	Pounds	Kg	Inches	cm
CSS-0883-DE-XXX-X-X	3/0 AWG – 477 kcmil	0.502 – 0.883	12.8 – 22.4	3	VARIABLE	VARIABLE	VARIABLE	VARIABLE
CSS-1140S-DE-060-X-X	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	16/8	TBD	TBD	95	241.3
CSS-1140H-DE-XXX-X-X	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	20/8	VARIABLE	VARIABLE	VARIABLE	VARIABLE
CSS-1140FT-DE-060-X-X	477 kcmil – 795 kcmil	0.814 – 1.140	20.7 – 29.0	20/8	43.8	19.9	99	251.5
CSS-1386S-DE-060-X-X	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	16/10	44.4	20.1	97	246.4
CSS-1386H-DE-XXX-X-X	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	20/10	VARIABLE	VARIABLE	VARIABLE	VARIABLE
CSS-1386FT-DE-060-X-X	605.0 kcmil – 1351.5 kcmil	1.051 – 1.386	26.7 – 35.2	20/10	46.2	21.0	101	256.5
CSS-1631S-DE-060-X-X	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	20/12	44	20.0	103	261.6
CSS-1631H-DE-XXX-X-X	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	26/12	TBD	TBD	TBD	TBD
CSS-1631FT-DE-060-X-X	1272 kcmil – 1780 kcmil	1.345 – 1.631	34.2 – 41.4	20/12	46.5	21.1	103	261.6
CSS-1912S-DE-066-X	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	20/12	62	28.1	109	276.9
CSS-1912H-DE-XXX	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	26-12	TBD	TBD	82	208.3
CSS-1912FT-DE-066-X	1351.5 kcmil – 2515 kcmil	1.524 – 1.912	38.7 – 48.6	20/12	62	28.1	109	276.9

ClampStar Part Number	Conductor Diameter Range			Number of Keepers Per Side	Average Weight		Overall Length
ClampStar Part Number	Conductor Range	Inches	mm	Number of Keepers Per Side	Pounds	Kg	Inches	cm
Rigid Frame
CSR-0325L-007-P***	#6 AWG – #2 AWG	0.162 – 0.325	4.1 – 8.3	1	1.7	.8	12.2	31.0
CSR-0325-015	#6 AWG – #2 AWG	0.162 – 0.325	4.1 – 8.3	2	3.5	1.6	26.38	67.0
CSR-0609-024	#2 AWG – 266.8 kcmil	0.316 – 0.609	8.0 – 15.5	2	7.7	3.5	43	109.2
CSR-0642L-024***	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	2	7.7	3.5	43	109.2
CSR-0642-024	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	3	14	6.4	52.8	134.1
CSR-0883L-024***	3/0 AWG – 477 kcmil	0.502 – 0.883	12.8 – 22.4	2	13.1	5.9	43.8	111.3
CSR-0883-036	3/0 AWG – 477 kcmil	0.502 – 0.883	12.8 – 22.4	3	19.1	8.7	65.4	166.1
CSR-1108L-024***	336.4 kcmil – 795 kcmil	0.684 – 1.108	17.4 – 28.1	2	14.4	6.5	43.8	111.3
CSR-1108-040	336.4 kcmil – 795 kcmil	0.684 – 1.108	17.4 – 28.1	4	27	12.2	78.8	200.2

ClampStar Part Number	Conductor Diameter Range			Number of Keepers Per Side	Average Weight		Overall Length
ClampStar Part Number	Conductor Range	Inches	mm	Number of Keepers Per Side	Pounds	Kg	Inches	cm
CRU ♦
CRU-0642-014	2/0 AWG – 266.8 kcmil	0.349 – 0.642	8.9 – 16.3	3	3	1.4	14.4	36.6
CRU-0883-015	3/0 AWG – 477 kcmil	0.502 – 0.883	12.8– 22.4	3	7	3.2	14.7	37.3
CRU-1108-019	336.4 kcmil – 795 kcmil	0.684 – 1.108	17.4 – 28.1	4	12	5.4	19.4	49.3

Classic Connectors

ClampStar® is a quick, easily installed, PERMANENT answer to pressing difficulties in dealing with overhead conductors.

For all aluminum stranded conductors, eg., ACSR, AAC, AAAC, ACAR, ACSS & composite core.

Also available for use on OHSW, OPGW, Copper and SWER

Clampstar® Catalog

Distribution

Transmission

OPGW & OHSW

Hardware & Tools

ClampStar®

Aluminium

Other Materials

Products

Recent Articles

Need Help Answering a Question?

Already know which ClampStar you Want?

Clampstar Installation Photos

Transmission & Distribution
Applications

Medium length display headline

Installation Instructions

Installation Training Videos

Click here to order customer drawings

Gallery

Visit our galleries to see Clampstar in action, or to discover our training videos

Explore

Contact

Corona Shields
CSC-0883-230	Corona shields are generally required for applications above 138 kv. The appropriate shielding is obtained by combining the ClampStar unit number with the highest anticipated system voltage. Example: CSC-1108-230 designates shielding for corona free performance of CRU/CSF/CSR-1108 units installed on a 230 kv system. **Same shield is used for 230 and 345 KV applications
CSC-0883-345 **
CSC-1108-345 **
CSC-XXXX-500

INSTALLATION KIT
Part Number	Description
Installation Kit-375	3/8″ eye bolt
Installation Kit-500	1/2″ eye bolt
Installation Kit-EXT-625	5/8″ cable extension for OPGW/OHSW

TORQUE NUTS
Part Number	Description	Wrenches
TNHH-500	Zinc housing over HDG Steel nut 1/2-13 thread, 40 ft-lb nominal	Install with 3/4″ socket Remove with 15/16″ deep-well socket
TNHH-500-55	Zinc housing over HDG Steel nut 1/2-13 thread, 55 ft-lb nominal
TNHH-500-SS	Zinc housing over Stainless Steel nut 1/2-13 thread, 40 ft-lb nominal
TNHH-500-BZ	Zinc housing over Stainless Steel nut 1/2-13 thread, 40 ft-lb nominal
TNHH-375	Zinc housing over HDG Steel nut 3/8-16 thread, 22 ft-lb nominal	Install with 9/16″ socket Remove with 3/4″ deep-well socket

Spline Bits
Part Number	Description
Installation Kit-T45	T45 Torque Spline Bit
Installation Kit-T60	T60 Torque Spline Bit
